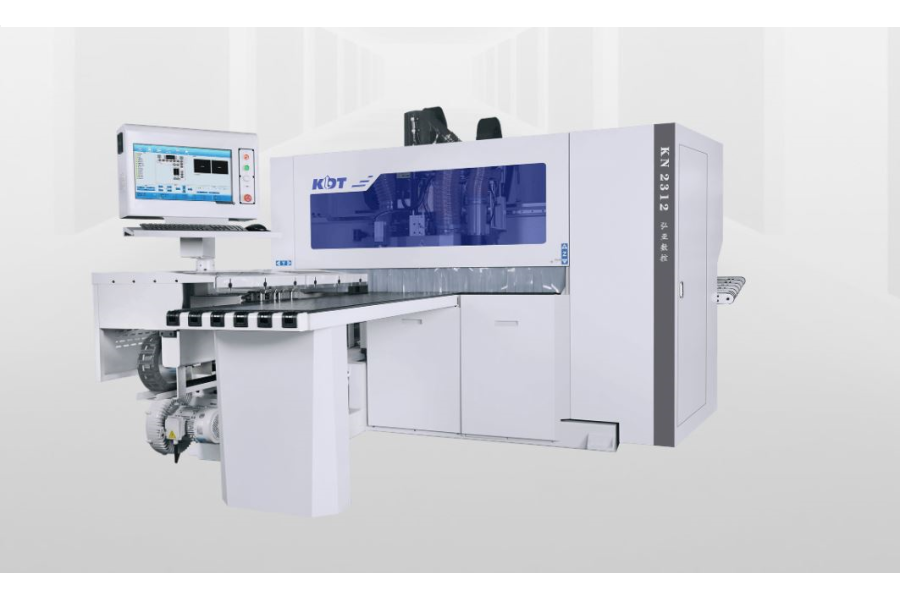

KN-2312HT


Add to Quote

Five-sided drilling, slotting, milling

Advantages of the scheme:

  • Slotting sawing device
  • High-power spindle (5.5KW)
  • Air-floating lifting table (patented technology)
    The worktable can be moved up and down, left and right
  • Standard sheet size detection function
    Ensure sheet size and process safety
  • Absolute servo bus
    No need to return to origin
  • Independent research and development software system
    Built-in ant colony algorithm, automatically select the optimal process
  • Diversified data format docking port
  • Double gripper blowing function (patented technology)
Categories: ,

Technical Parameter

Panel Length(mm) 200-2500
Panel width(mm) 50-1200
Panel Thickness(mm) 9-60
Max Speed of Gripper(m/min) 130
Max Speed of Y/Z-Axis(m/min) 75/30
Number of Drills Vertical drill 12V+Horizontal drill 8H+Saw blade 1S
Power of Spindle(kW) 5.5
Total Power(kW) 14.95
Overall Size(L*W*H) 5280L*2480W*2190H
Size & QTYof Dust Hood 200*1
