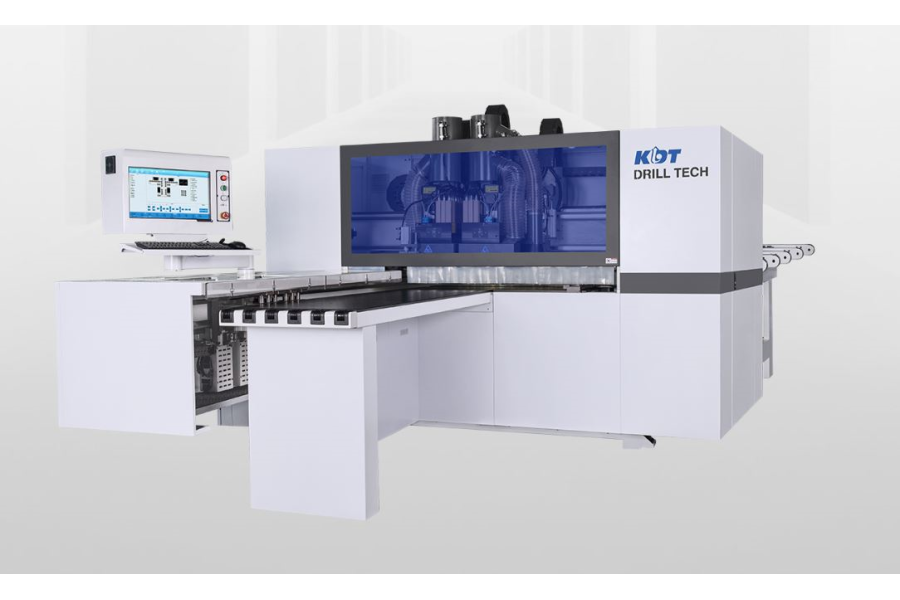

KD-612MS


Add to Quote

Six-sided drilling, double-sided slotting, milling type

Advantages of the scheme:

  • Grip Rail 5500mm
    One-time grabbing and processing of long boards
  • Air floating lifting table (patented technology)
    The worktable can be moved up and down, left and right
  • Standard sheet size detection function
    Ensure sheet size and process safety
  • Absolute value servo bus control system
    No need to return to origin
  • Independent research and development software system
    Built-in ant colony algorithm, automatically select the optimal process
  • Diversified data format docking port
  • Double gripper blowing function (patented technology)
Categories: ,

Technical Parameter

Panel Length(mm) 200-2800
Panel width(mm) 50-1200  35~50(L≤1000)
Panel Thickness(mm) 9-60
Max Speed of Gripper(m/min) 130
Max Speed of Y/Z-Axis(m/min) 75/30
Number of Drills Vertical drill 24V+Horizontal drill 12H+Vertical drill 9V
Power of Spindle(kW) 2*3.5
Total Power(kW) 25.85
