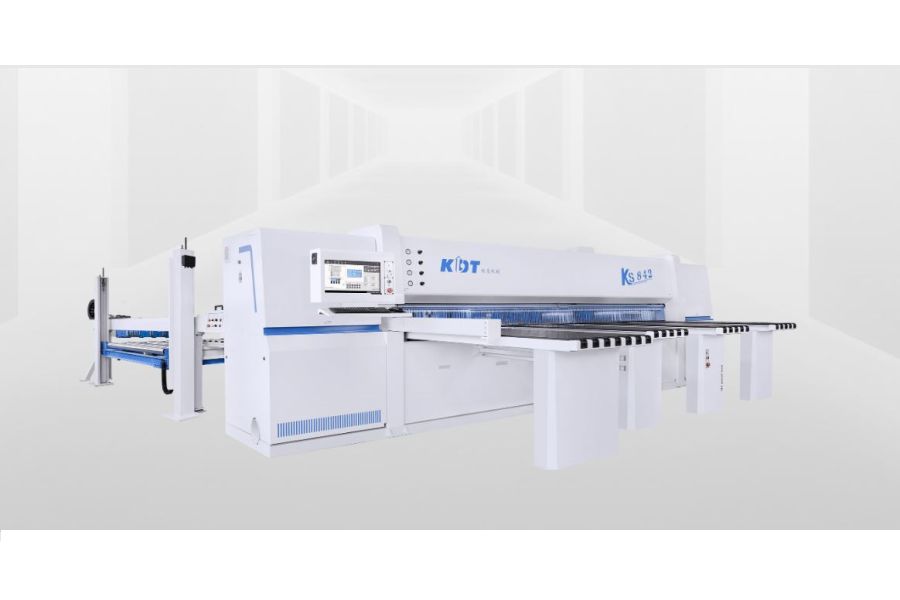

KS-842L


Add to Quote

Heavy duty rear loading model self-developed control system Presize

Advantages of the scheme:

  • Magnetic grid positioning (patented technologies)
    Minimum push plate thickness 8mm
  • Siemens brand components
    Stable and strong anti-interference ability
  • Standard Optimisation Software
    Optimise layout to achieve high – efficiency sawing
  • Electric adjustment of small saw
    Quickly adjust sawing straightness and scribing depth
Categories: ,

Technical Parameter

Max Machining Size  (L)(W)(H)(mm) 4300L*4300W*120H
Maximum board size after loading
4000*2100
Min. Machining Size  长(L)宽(W)(mm) 34L*45W
Main Saw Φ*φ (mm) Φ450*φ75
Dia.of Scoring Saw Φ*φ(mm) Φ200*φ50
Cutting Speed(m/min) 95
Saw Carrier Return Speed(m/min) 120
Max. Feeding Speed(m/min) 95
Main SawMotor Power(kW) 18.5（frequency conversion）
Scoring Carrier Motor Power(kW) 2
Saw Carrier Motor Power(kW) 2
Feeding Servo Motor(kW) 2*2
Total Power(kW) 35
Overall Size  (L)(W)(H)(mm) 973L*6730W*1890H
Dust Hood Size and Quantity Φ100*1  Φ125*1 Φ200*2
