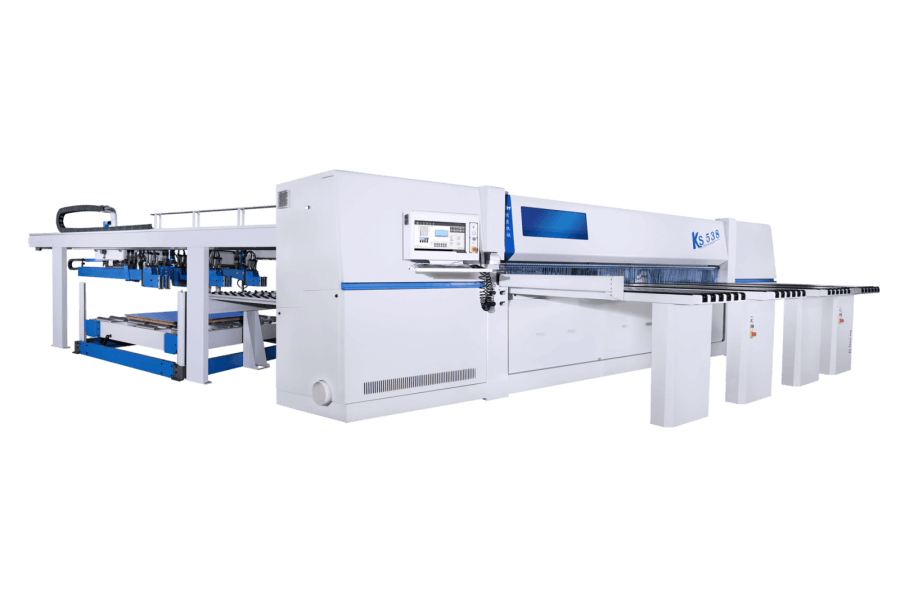

KS-538HL


Add to Quote

Introduce Italian technology servo double pusher high-speed heavy-duty rear loading model

Advantages of the scheme:

  • Servo positioning control for main saw lifting
    – Improve sawing quality
  • Intelligent gripper control
    – Effective protection of the board
  • Main Saw power 18.5kW (frequency conversion)
    – Energy saving and environmental protection
  • Using magnetic levitation linear drive technology
Categories: ,

Technical Parameter

MODEL：KS-538HL
Max Machining Size (L)(W)(H)(mm) 4300L*3800W*150H
Maximum board size after loading 3700*2100
Min. Machining Size (L)(W)(mm) 60L*38W
Main Saw Φ*φ (mm) Φ530*φ75
Dia.of Scoring Saw Φ*φ(mm) Φ215*φ50
Cutting Speed(m/min) 150
Saw Carrier Return Speed(m/min) 180
Main SawMotor Power(kW) 18.5（frequency conversion）
Scoring Carrier Motor Power(kW) 2.2
Saw Carrier Motor Power(kW) 3.5
Feeding Servo Motor(kW) 2
Total Power(kW) 43
Overall Size (L)(W)(H)(mm) 10954L*7210W*2187H
Dust Hood Size and Quantity Φ125*2 Φ200*2
