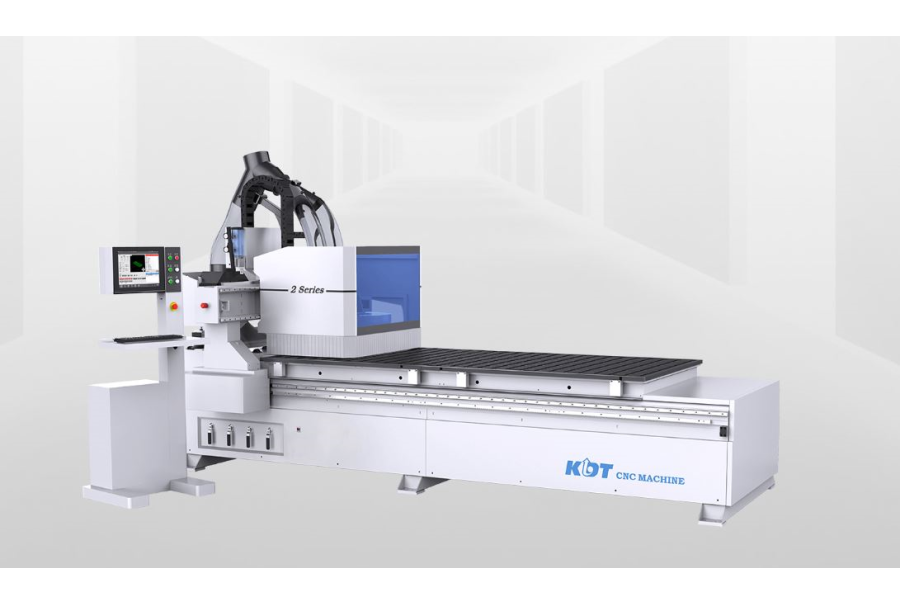

KN-2510DE


Add to Quote

5*10 feet processing table

Advantages of the scheme:

  • 9KW spindle + 12 servo tool magazines
    High power spindle, servo tool magazine, high quality, high efficiency
  • 9V drill set
    Ensure drilling depth and achieve efficient drilling
  • Vacuum 6 zones
    Refined vacuum adsorption module, stronger plate and adsorption
  • Pushing mechanism
    Save labor and improve efficiency



Categories: ,

Technical Parameter

Max. Working Size X/Y/Z(mm) 3100*1570*80
Max. Moving SpeedX/Y/Z(m/min) 80/80/25
Vacuum Area 4
Vacuum Capacity(m/h) 244*2
Size & QTY of Dust Hood φ200*1
Tool Magazine 12 PCS Servo Tool Magazine
Total Power(kW) 25.5
Main Spindle KDT 9kW ISO-30 Spindle
Drilling Head 9V Drilling Head
