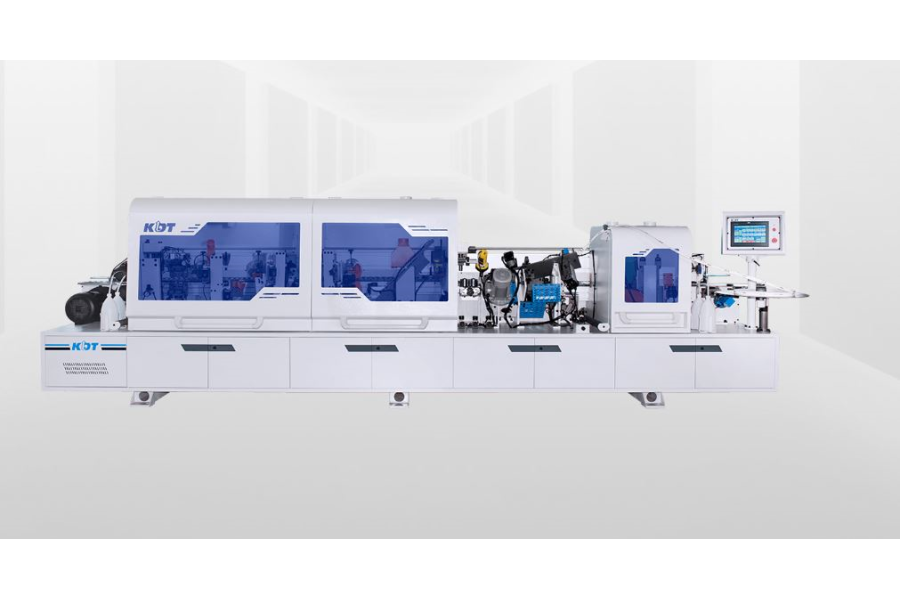

KE-395J


Add to Quote

Fixed 45* partial bevel, Fixed 45* full bevel

Advantages of the scheme:

  • Bevel edge banding
    Fixed 45* full bevel edge, fixed 45* partial edge banding
  • Glue-coating and pressing mechanism for beveled edges
    Configuration counter adjustment is intuitive and convenient
  • Pre-milling mechanism
    High-speed sawing and smashing the edges of the cutting board
  • Inverter control mechanism
    The high-speed motor of the whole machine
Categories: ,

Technical Parameter

 Feeding Speed(m/min) 14
 Tape thickness(mm) 0.45-1.5（Tilt）
Panel Thickness(mm) 9-25（Tilt）
Panel Length(mm) ≥150
Panel Width(mm) ≥135
 Min. Panel Size(mm) 150*135
Total Power(kW) 20.35
Overall Size(L)(W)(H)(mm) 5750L*830W*1670H
Size & QTY of Dust Hood φ100*6+φ50*1

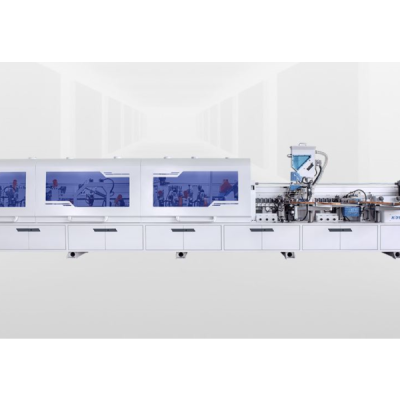

Related products
