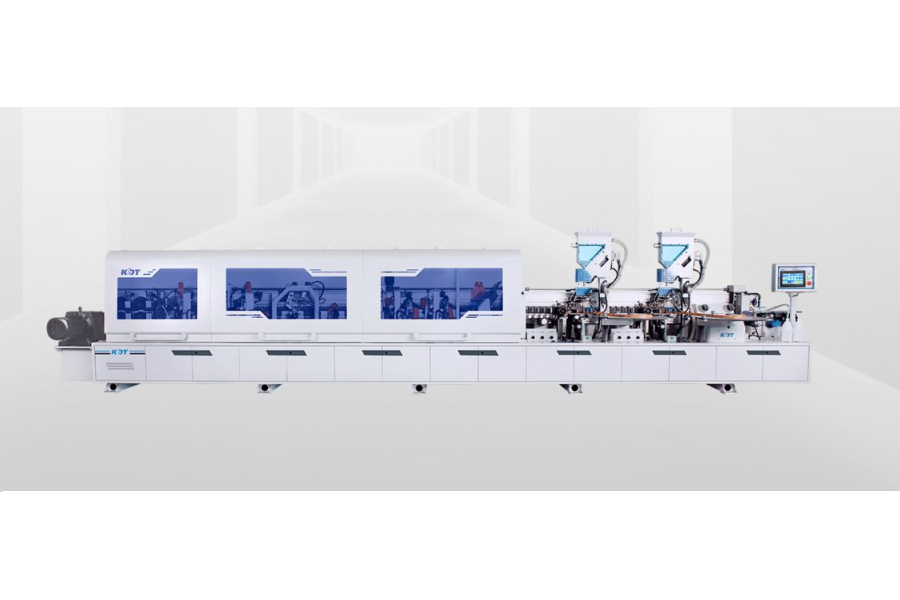

KE-668JSGA(45)


Add to Quote

40mm end sealing

Advantages of the scheme:

  • End sealing
    Can seal 40mm short side panels
  • Auxiliary feeding device
    Small board discharge is more accurate and stable
  • Double melt mechanism
    Removal of excess sealing material in the edge band of the processed
  • Profile tracking trimming
    Trimmed edges of different shapes
Categories: ,

Technical Parameter

Feeding Speed(m/min) 15-23
Tape thickness(mm) 0.4-3
Panel Thickness(mm) 10-60
Panel Length(mm) End sealing：W≥40mm,L≥200mm;

Long edge banding：80mm>W≥45mm,L≥300mm
Panel Width(mm)
Total Power(kW) 29.55
 Overall Size(L)(W)(H)(mm) 9130L*990W*1960H
Size & QTY of Dust Hood φ100*3+φ125*5?
