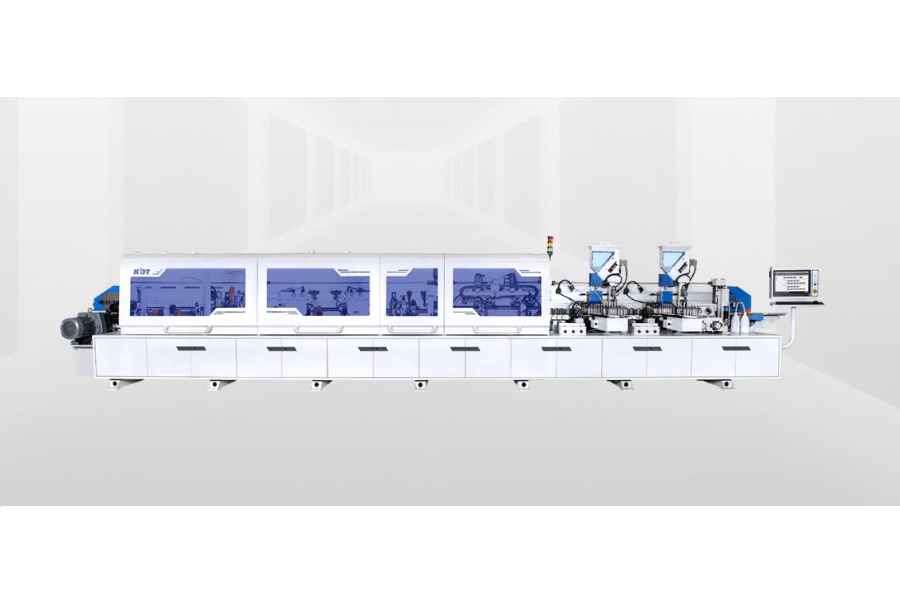

KE-588HL


Add to Quote

Whole machine servo control the maximum feed speed is 30m/min

Advantages of the scheme:

  • Independent research and development control system
    The control system intelligently matches the processing requirements
  • Servo level head
    Servo positioning with high precision
  • 6+6 channel servo belt
    According to the needs of the processed workpiece
  • Servo adjustment of the whole machine
    Simply scan the code to complete the complex edge banding process
Categories: ,

Technical Parameter

Feeding Speed(m/min) 23-30
Tape thickness(mm) 0.4-3
Panel Thickness(mm) 10-60
Panel Length(mm) ≥120
Panel Width(mm) ≥60
 Min. Panel Size(mm) 120*60
Total Power(kW) 43.26
Overall Size(L)(W)(H)(mm) 21.02
Size & QTY of Dust Hood φ100*8+φ125*1
